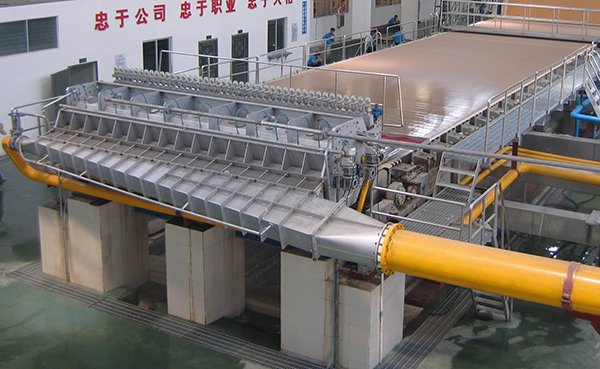

Many papermaking machines are based on the principles of the Fourdrinier Paper Machine, which uses a specially woven plastic fabric mesh conveyor belt in the forming section, where a slurry of fibre (usually wood or other vegetable fibres) is drained to create a continuous paper web. After the forming section the wet web passes through a press section to squeeze out excess water, then the pressed web passes through a heated drying section.
Fourdrinier Paper machine have four distinct operational sections:
Forming section, commonly called the wet end, is where the slurry of fibres filters out fluid a continuous fabric loop to form a wet web of fibre.
Press section where the wet fibre web passes between large rolls loaded under high pressure to squeeze out as much water as possible.
Drying section, where the pressed sheet passes partly around, in a serpentine manner, a series of steam heated drying cylinders. Drying removes the water content down to a level of about 6%, where it will remain at typical indoor atmospheric conditions.
Calender section where the dried paper is smoothened under high loading and pressure. Only one nip is necessary in order to hold the sheet, which shrinks through the drying section and is held in tension between the press section (or breaker stack if used) and the calender. Extra nips give more smoothing but at some expense to paper strength.
Our Fourdrinier paper machine is a high-efficiency paper making machine designed for the continuous production of high-quality cultural paper, packaging paper, kraft paper, fluting paper, and specialty grades. With advanced forming, pressing, drying, and finishing technologies, the machine ensures excellent sheet formation, uniform fiber distribution, and stable moisture profiles across the entire web.
Engineered for modern paper mills, the Fourdrinier paper machine delivers high speed, low energy consumption, and outstanding operational reliability—making it one of the most widely used paper production lines in the global paper industry.
Key Features
- High-Quality Sheet Formation: The Fourdrinier forming section provides superior fiber dispersion, excellent formation, and consistent paper quality.
- Efficient Press Section: Optimized press configuration (single press, double press, or shoe press) to improve dryness, enhance strength, and reduce steam consumption.
- Advanced Drying System: Multi-cylinder drying section with steam and condensate system for fast, uniform moisture removal and reduced energy cost.
- Stable Operation at High Speed: Robust frame design, precise tension control, and modern lubrication systems ensure smooth, continuous production.
- Customizable Configuration: Machine width, design speed, paper grade, automation level, and energy-saving options can be customized for each paper mill.
- Easy Maintenance: Modular structure with accessible components and intelligent control systems for simplified operation and reduced downtime.
Applications
- Printing and writing paper
- Copy paper / tissue base paper
- Kraft paper / fluting paper / testliner
- Duplex board top layer
- Specialty industrial papers
Why Choose Our Fourdrinier Paper Machine?
- Over 40 years of experience in paper mill equipment manufacturing
- Complete solution from stock preparation to finished paper
- International-brand components (SKF, Siemens, ABB, Schneider) available
- Strong engineering team for installation, commissioning, and training
- Global service network and proven performance in many countries
Technical data:
Raw material: Recycled paper,Virgin pulp
Output paper: Kraft paper/Corrugated paper/Writing paper/Copy paper,etc
Weight: 40-500gsm
Wire: up to 5 wires(5 layers)
Net paper width: up to 6600mm
Capacity: up tp 1000T/D
Work speed: up tp 1000m/min
